Eurocard Connector

WL-ES-35113XXAMSXXBNAX

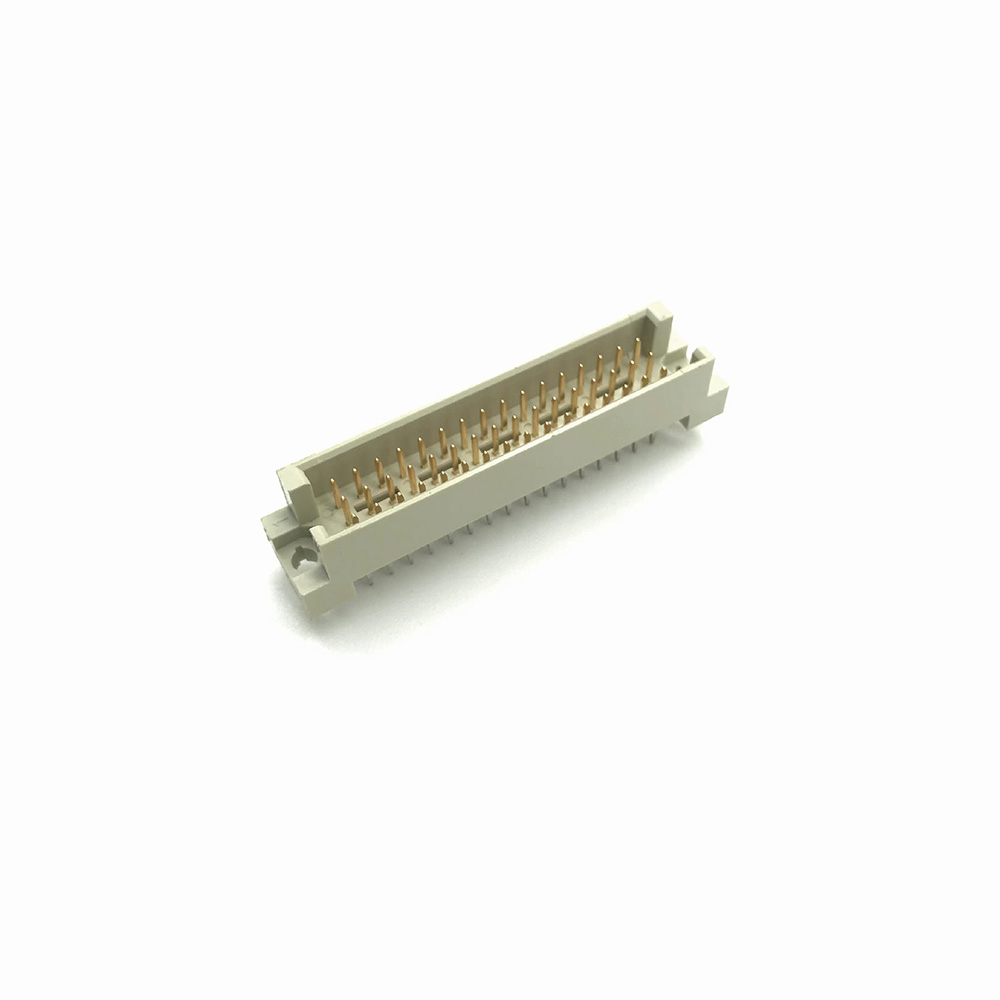

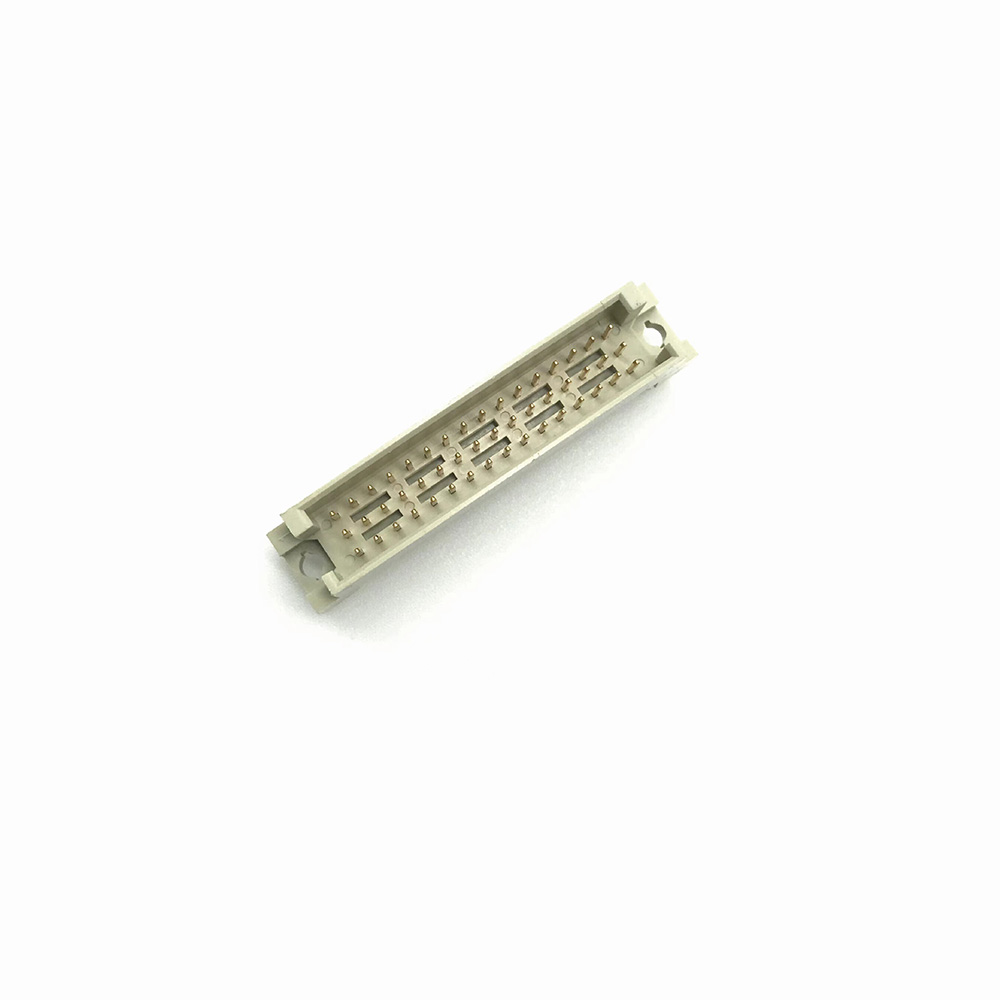

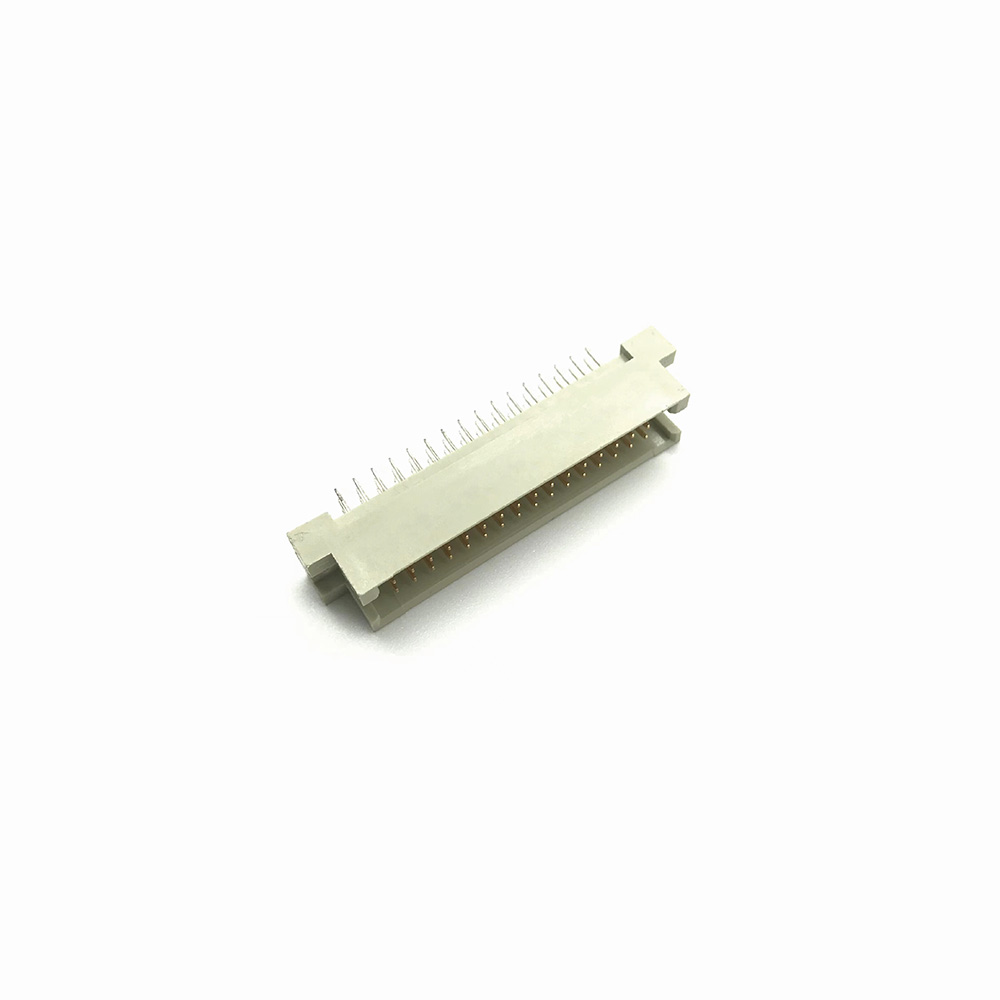

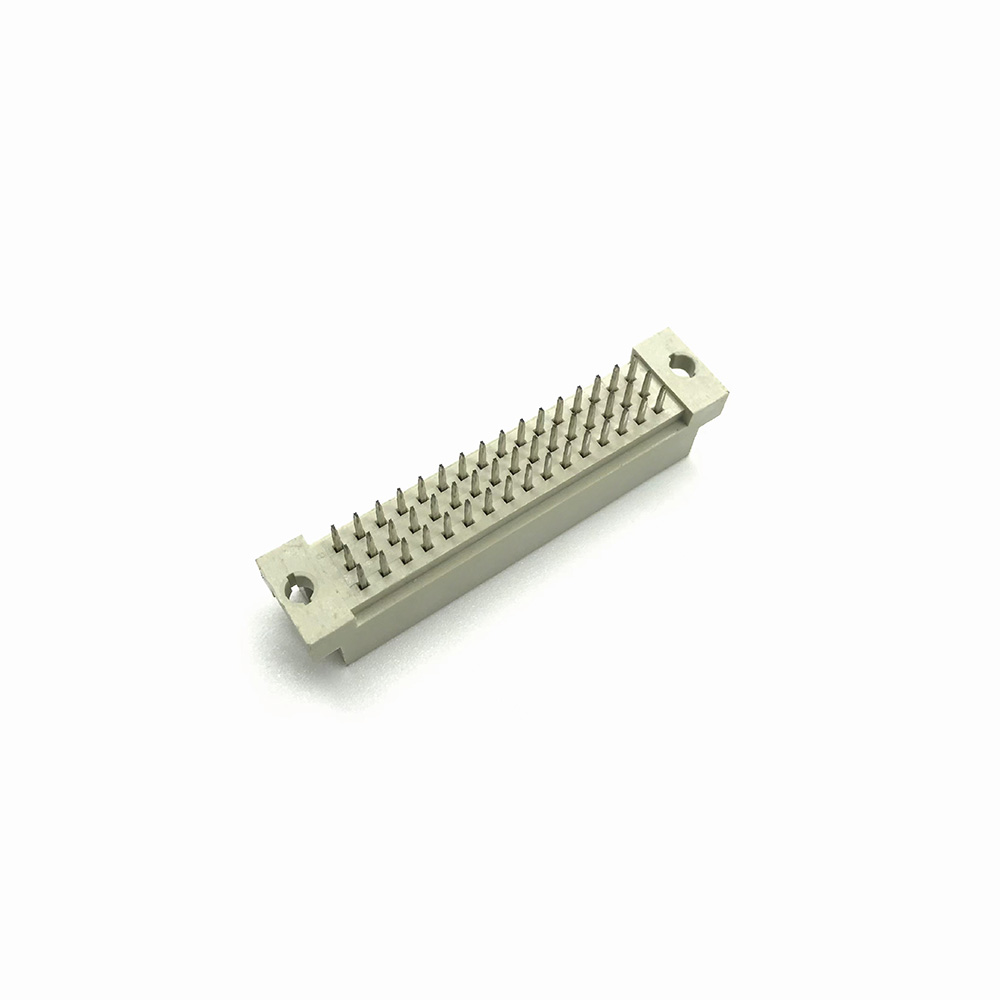

Product name: Eurocard Connector
Number: WL-ES-35113XXAMSXXBNAX
Specifications: Eurocard Connector , 3‑Row, ST Plug , Without Locking Clip
INQUIRY EMAIL

Technical parameters:

Rated Current:3.0AMP

Contact Resistance:30mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000MΩ Min

Operation Temperature:-40°C to +105°C

Contact Material:Copper Alloy

Contact Plating:Au or Sn Over Ni

Insulator Material:Polyester(UL94V-0)

Resistance To Soldering Heat:245°C±5°C For 5 Second(PBT insulator)

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;

2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection

3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

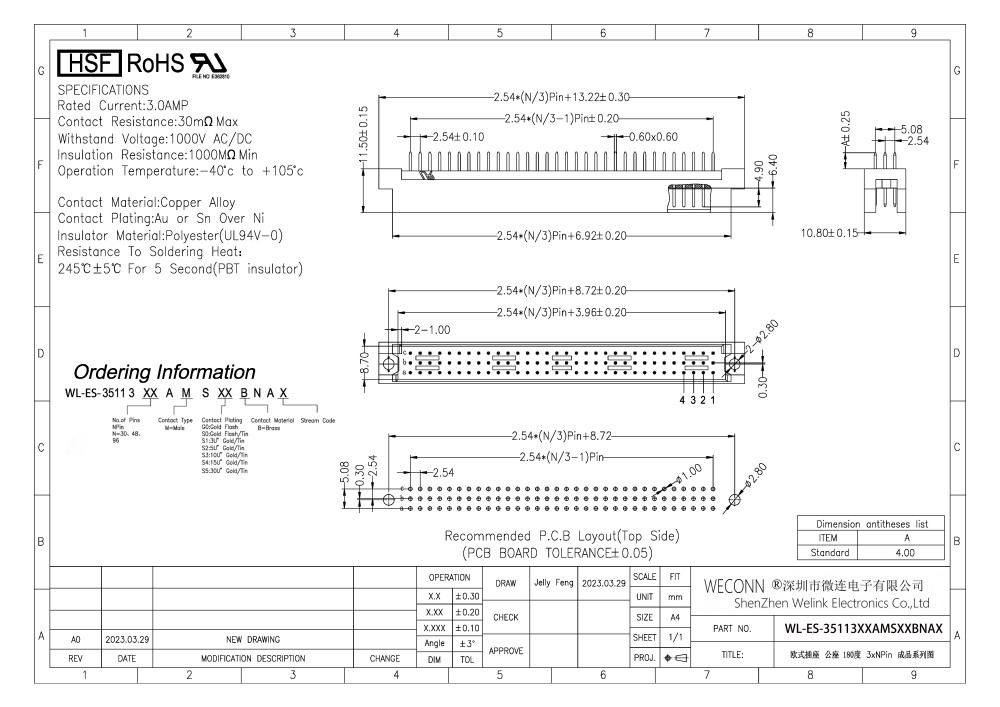

Drawing：
