Eurocard Connector

WL-ES-35164128AFSXXPNAX

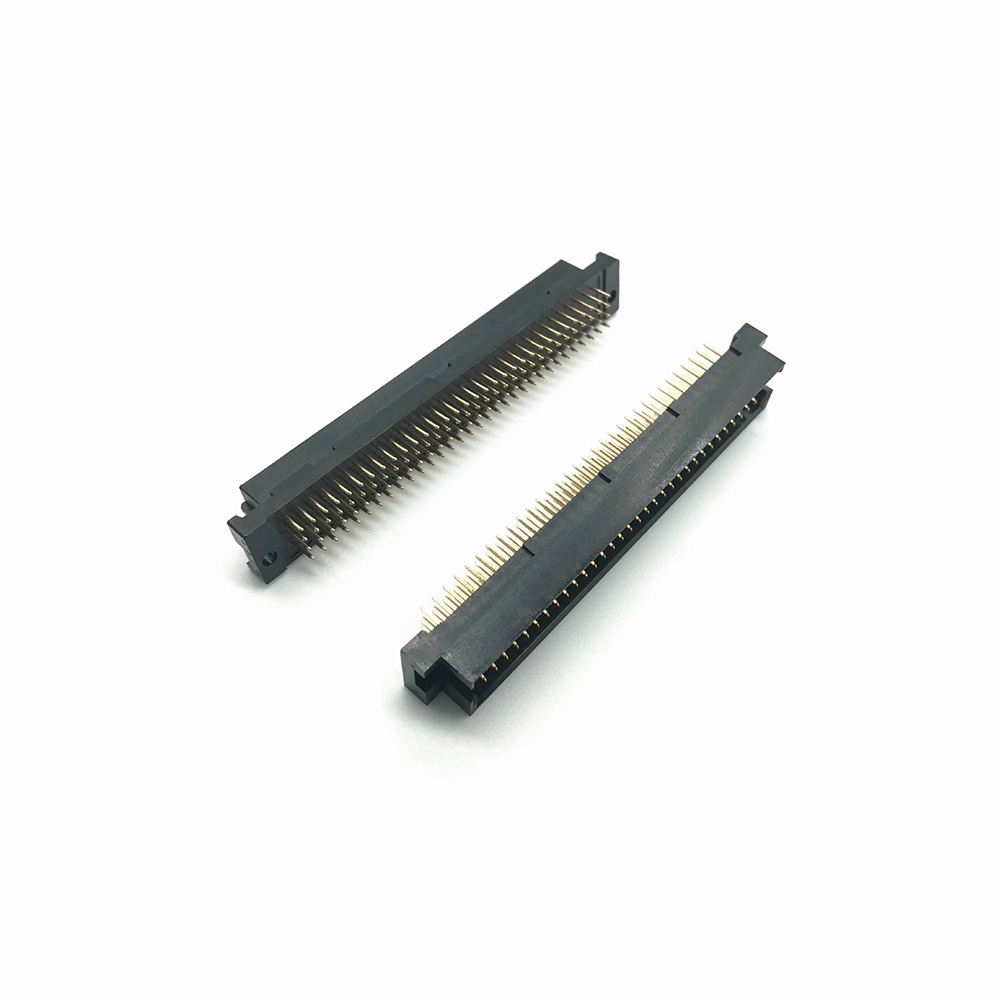

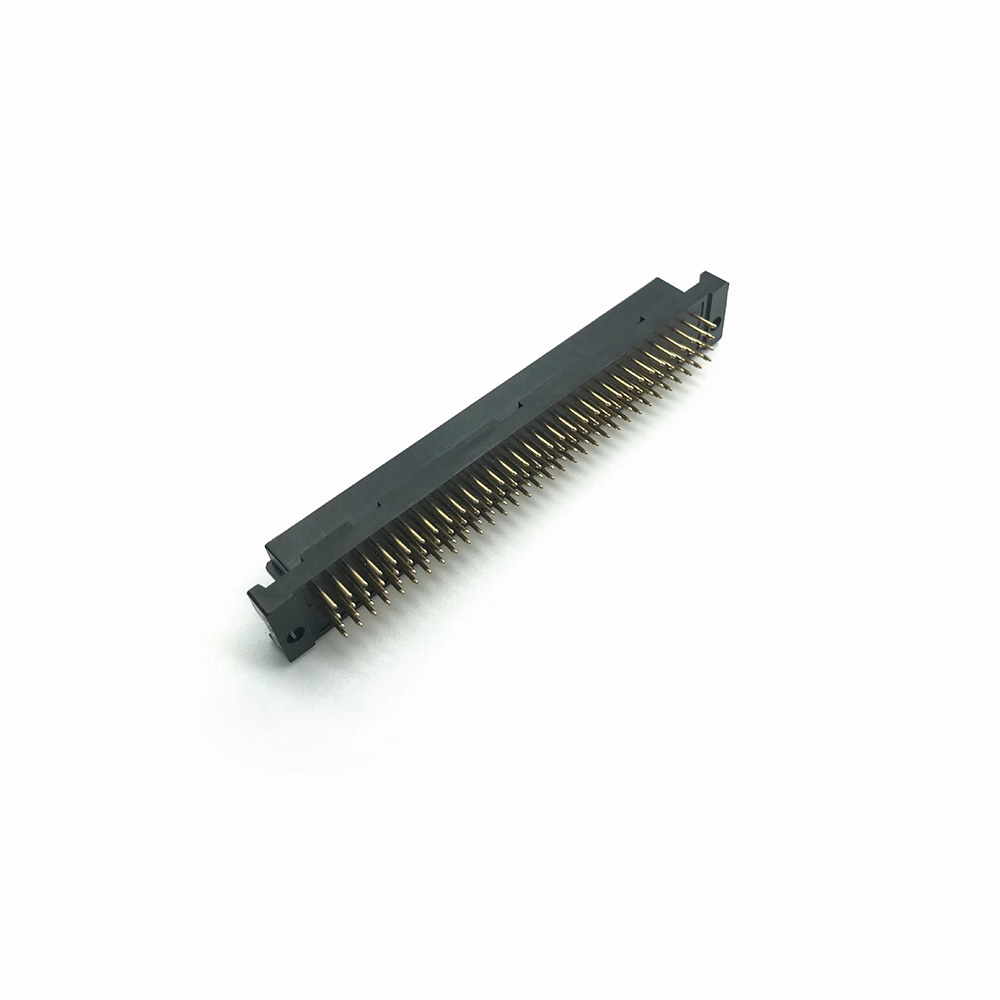

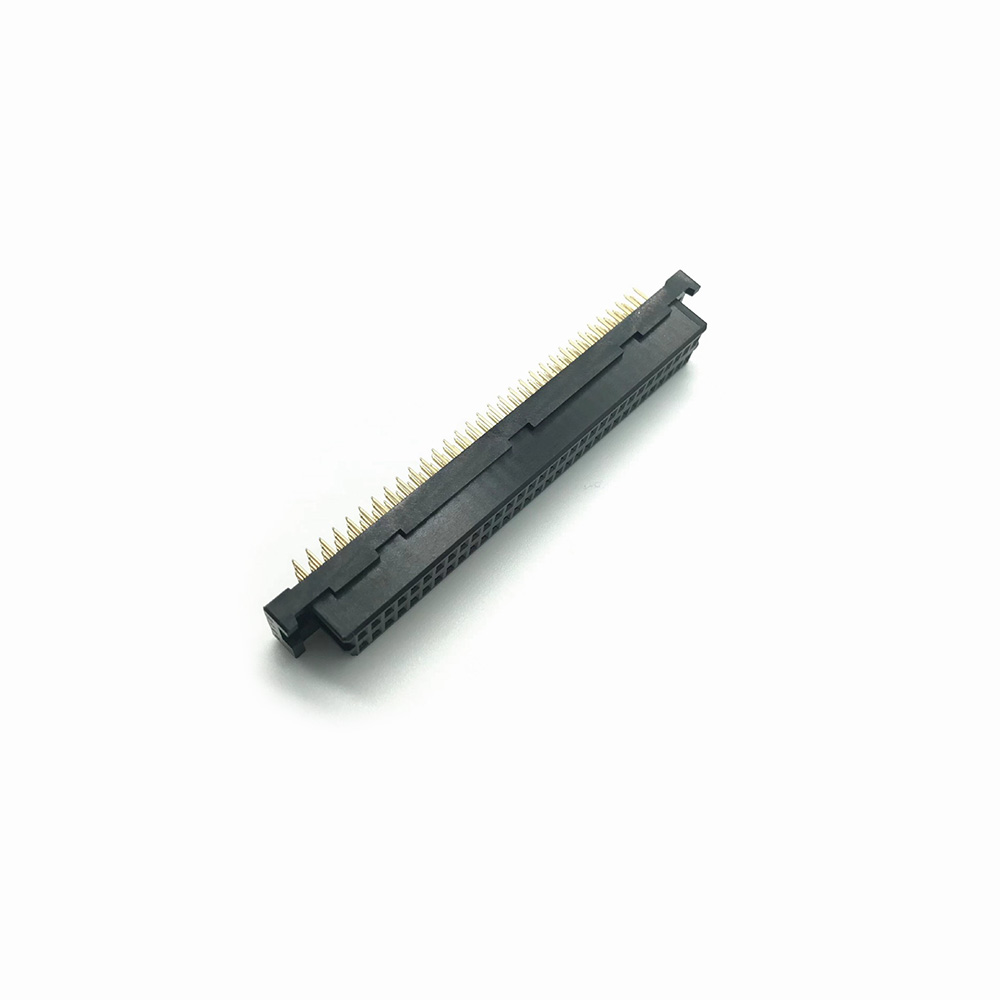

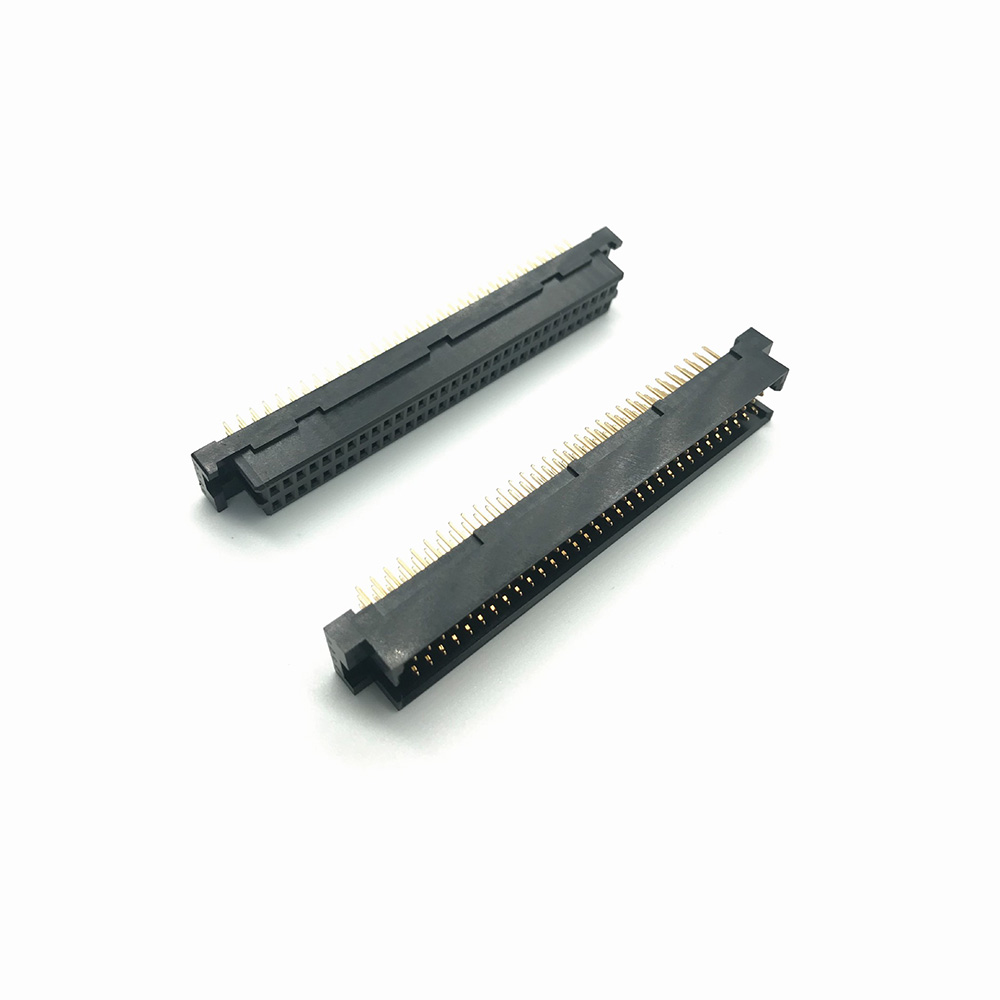

Product name: Eurocard Connector
Number: WL-ES-35164128AFSXXPNAX
Specifications: Eurocard Connector,128‑Pin to 64‑Pin Adapter,ST Receptacle
INQUIRY EMAIL

Technical parameters:

Rated Current:5.0AMP

Contact Resistance:20mΩ

MaxWithstand Voltage:1000V AC/DC

Insulation Resistance:1000MΩ Min

Operation Temperature:-40°C to +105°C

Contact Material:Phosphor Bronze

Contact Plating:Au or Sn Over Ni

Insulator Material:Polyester(UL94V-0)

Soldering Temperature:245°C±5°C For 5~10 Second(PBT insulator)

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;

2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection

3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

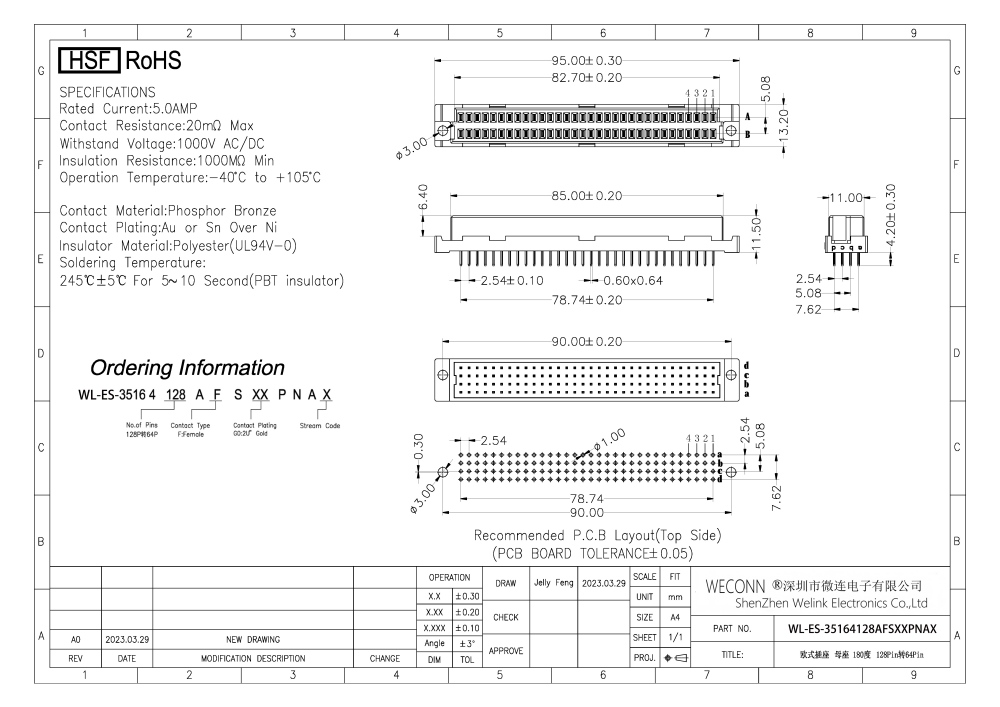

Drawing：
