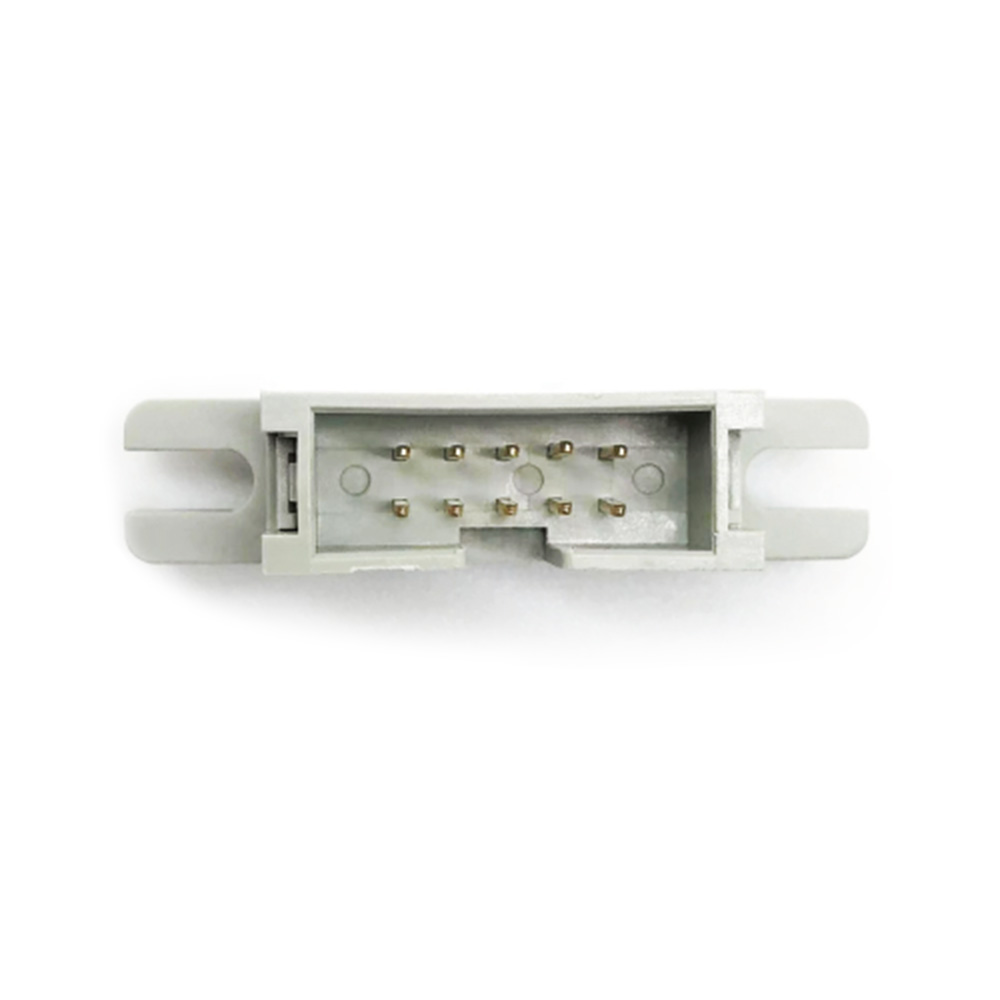

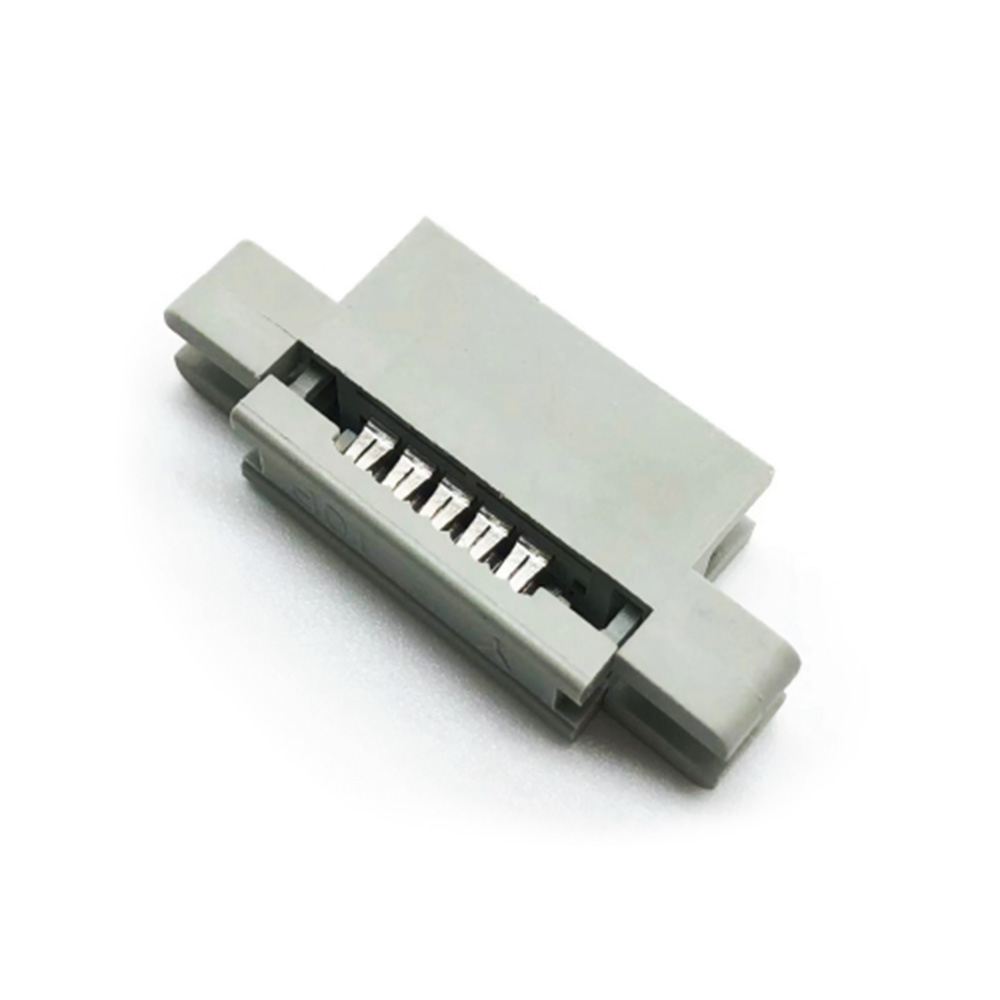

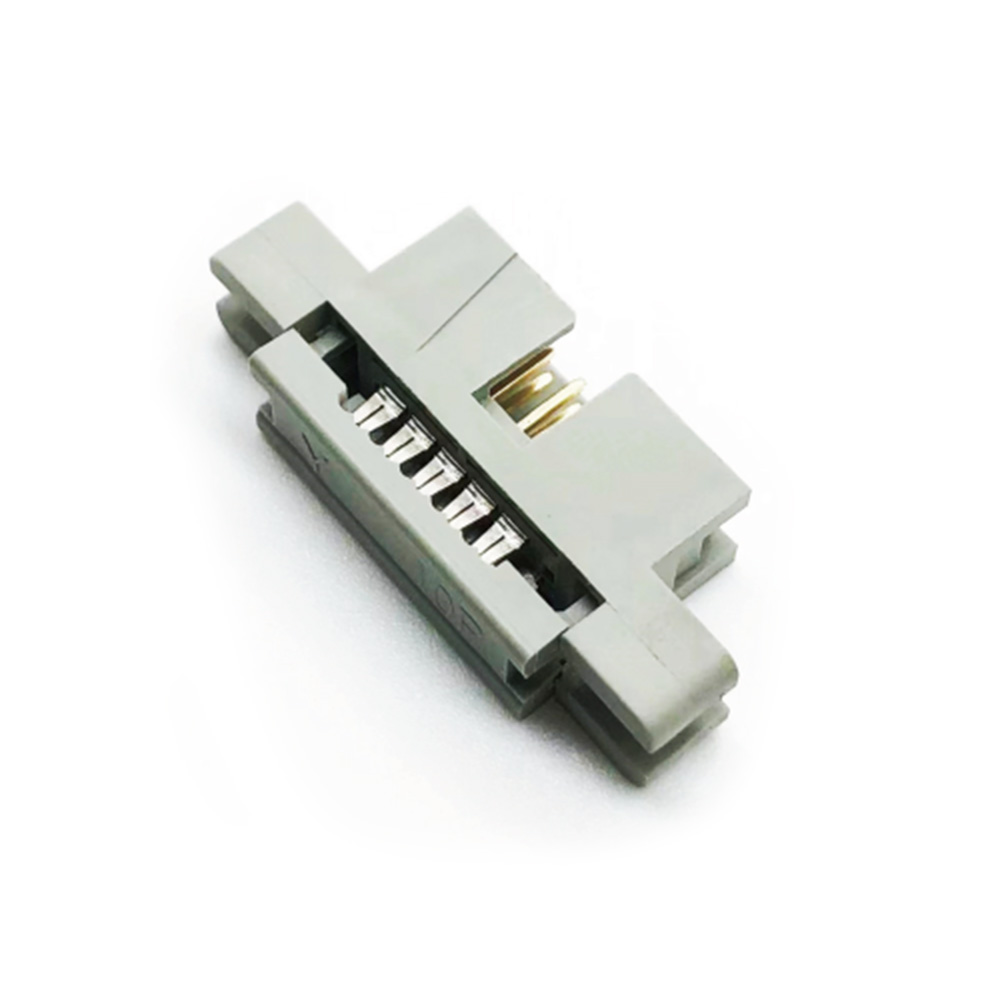

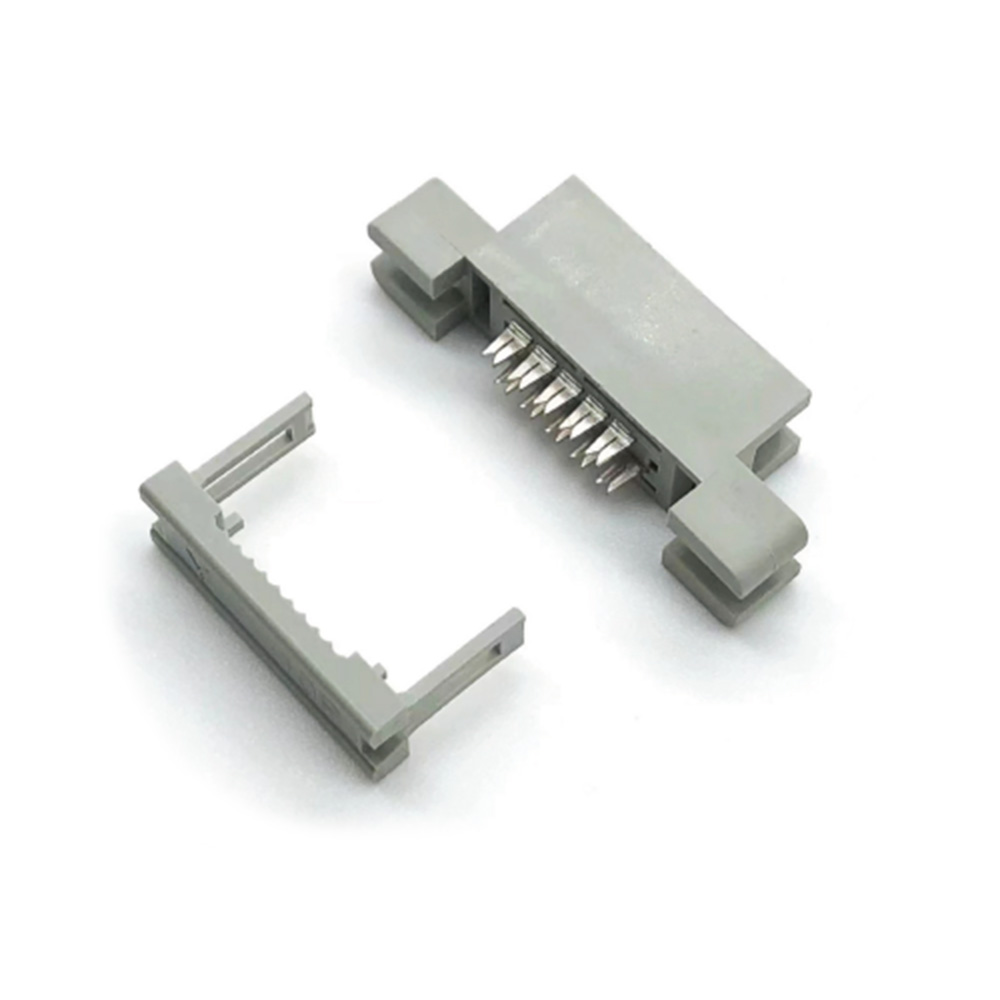

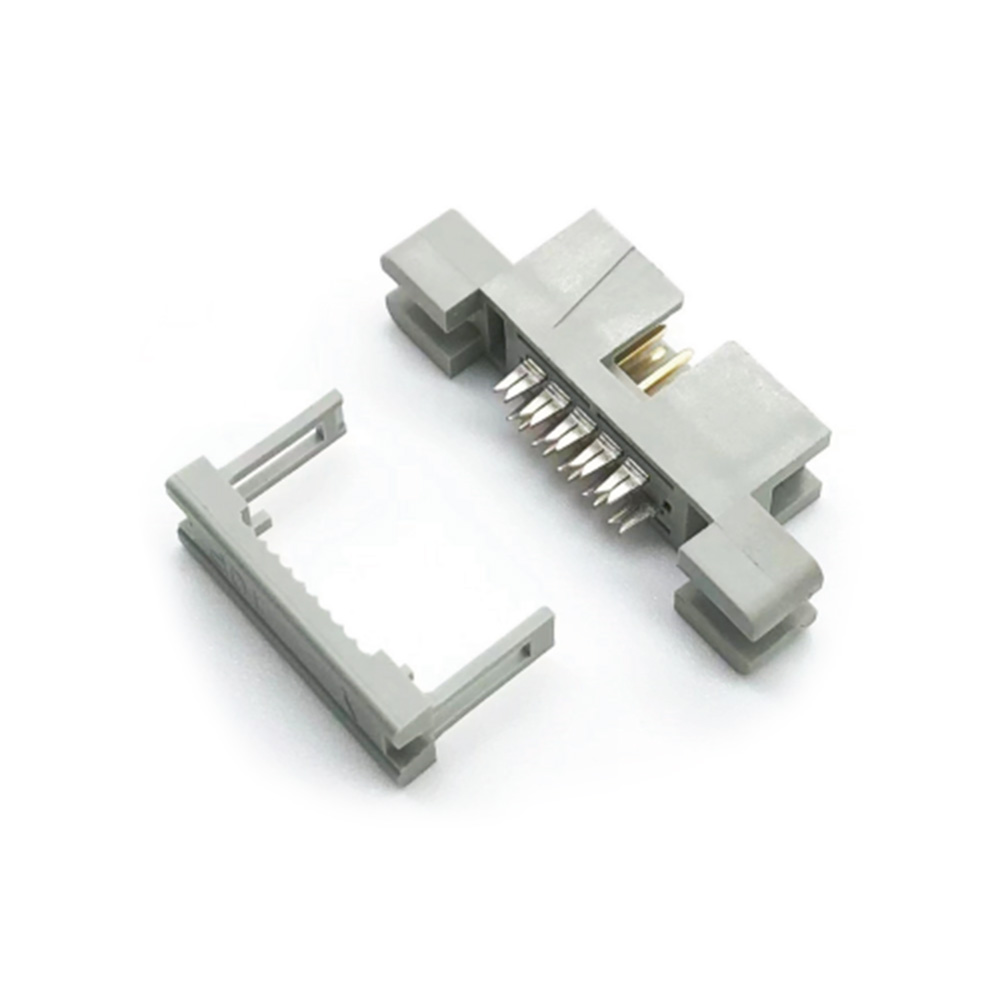

Box Header

WL-BH-3910XXXXWXN0X

Product name: Box Header
Number: WL-BH-3910XXXXWXN0X
Specifications: 2.54mm IDC Box Header,Two‑Piece Type,With Ears,6‑64Pin
INQUIRY EMAIL

Technical parameters:

1.Rated Current:3.0AMP

2.Contact Resistance:20mΩ Max

3.Withstand Voltage:1000V AC/DC

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature:-40°c to +105°c

6.Contact Material:Brass

7.Contact Plating:Au or Sn Over Ni

8.Insulator Material:Polyester(UL94V-0)

9.Resistance To Soldering Heat:245°C±5°C, 10s(PBT insulator)

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

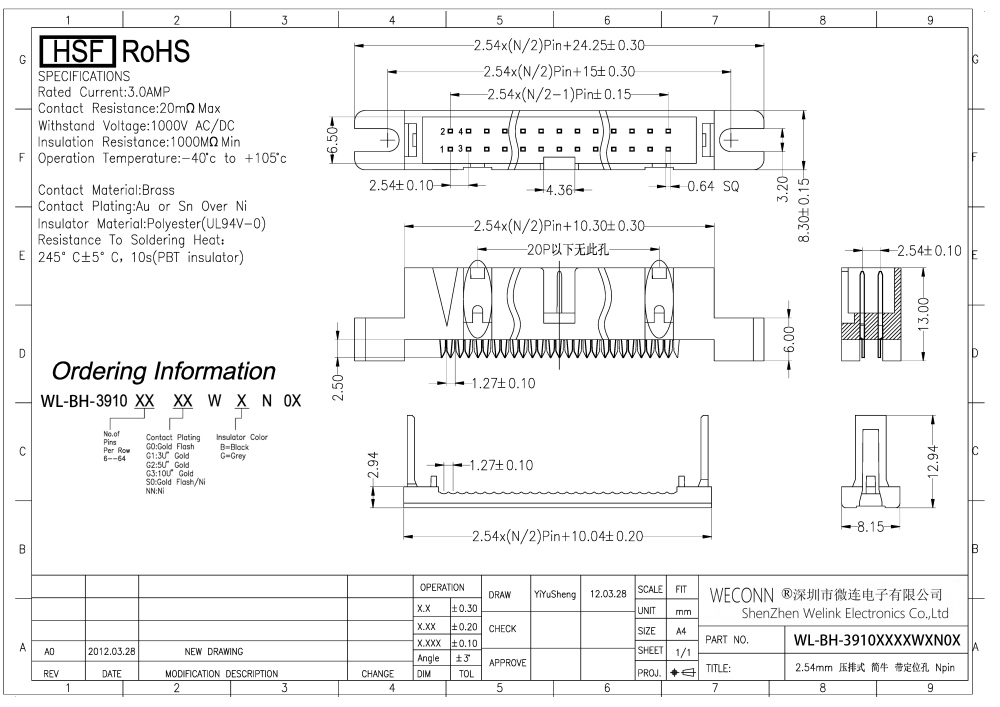

Drawing:
