Female Header

WL-FM228502XXXNXXSYXXX

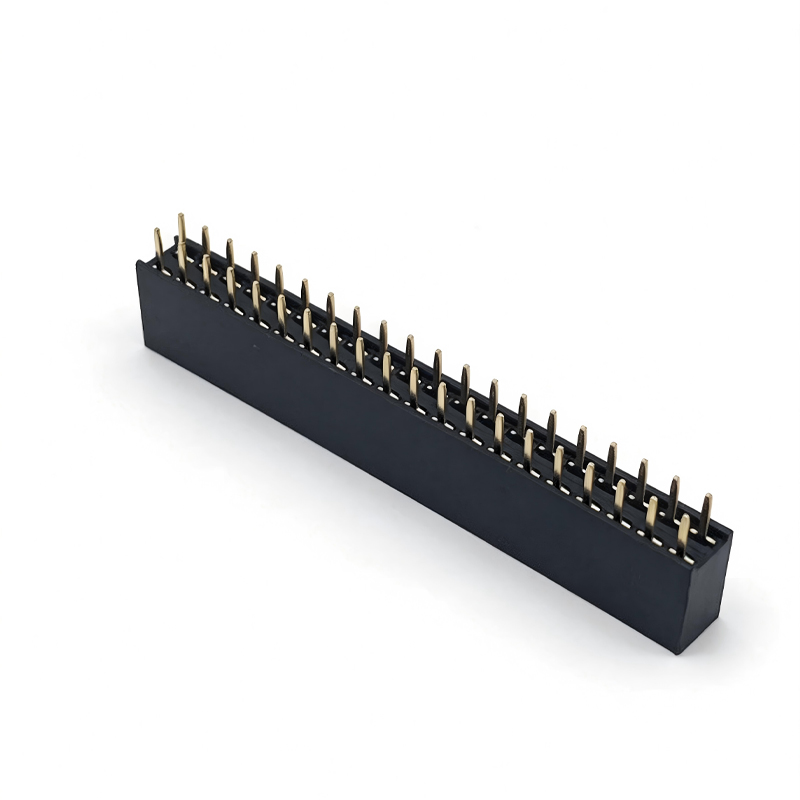

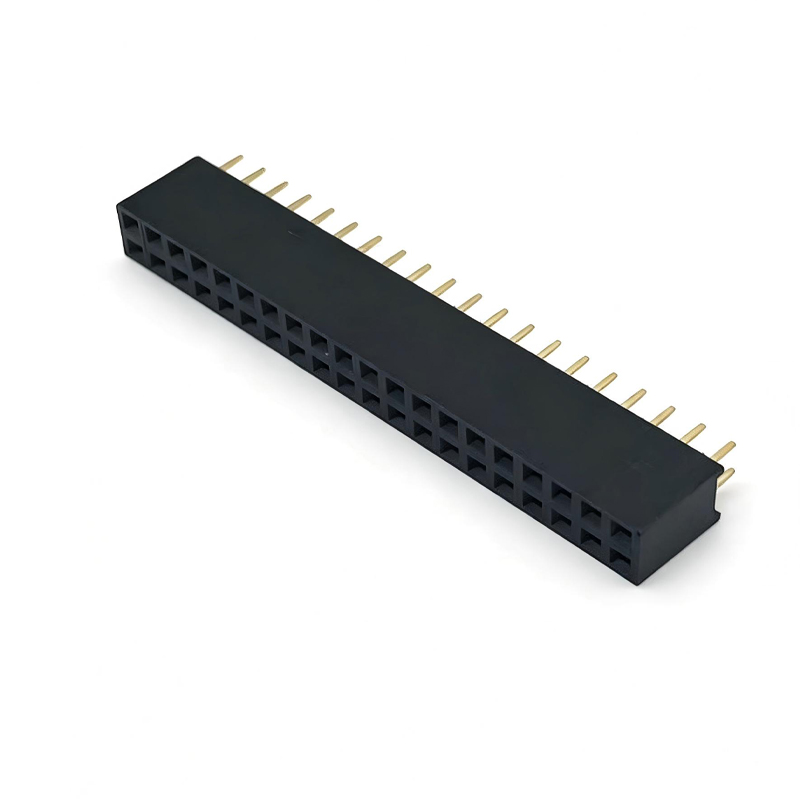

Product name: Female Header
Part Number: WL-FM228502XXXNXXSYXXX
Specification:2.54PF H8.5mm 2xNpin 180°
INQUIRY EMAIL

Technical Parameters:

1.Rated Current: 3.0AMP

2.Contact Resistance: 20MΩ Max

3.Withstand Voltage: 1000V AC/DC

4.Insulation Resistance: 1000MΩ Min

5.Operation Temperature: -40°c to +105°c

6.Contact Material: Copper Alloy

7.Contact Plating: Au Or Sn Over Ni

8.Insulator Material: Polyester(UL94V-0)

9.Resistance To Soldering Heat:245°C+5°C, 10s(PBT insulator)

260°C+5°C, 10s(PA6T&PA9T&LCP insulator)

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

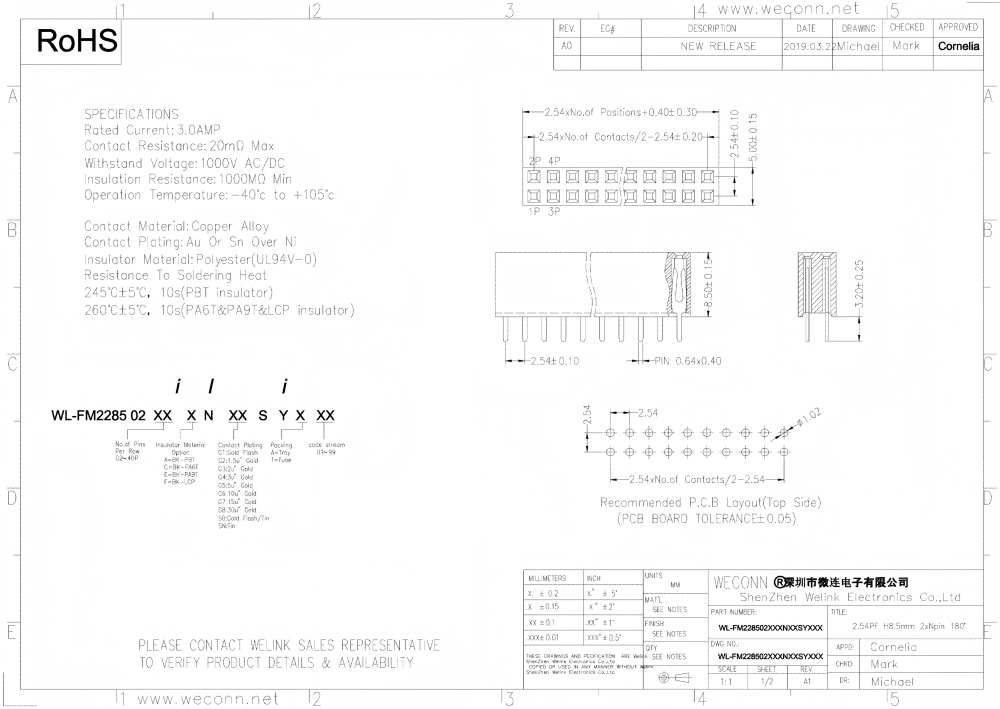

Drawing:
