Automotive connector

WL-AC519-210XXAB0X

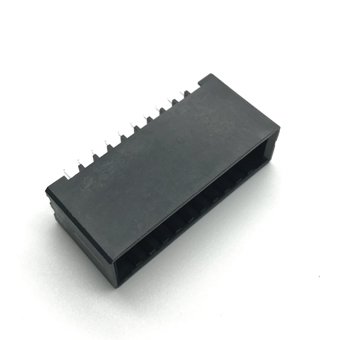

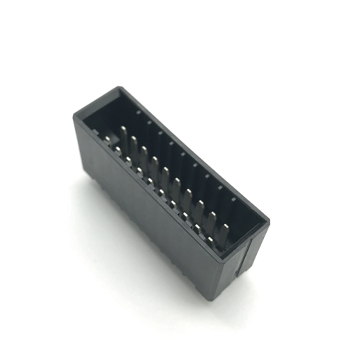

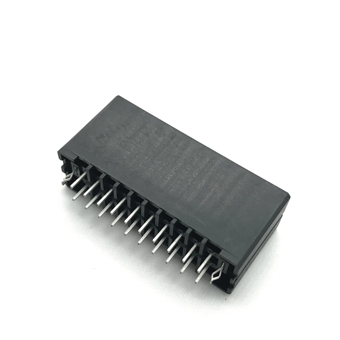

Product name: Type A Connector Housing(178328-5)
Number: WL-AC519-210XXAB0X
Specifications: 20Pin/3.81mm Pitch/ST
INQUIRY EMAIL

Technical parameters:

1.Rated Current:5.OAMP

2.Contoct Resistance:20mΩ Max

3.Withstand Voltage:1000v AC/DC

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature;-40C to +105℃

6.Contoct Matericl:Phosphor Bronze

7.Contoct Plating:Au or Sn Over Ni

8.Retention LEG:Copper Alloy

9.Retention LEG Plating:Tin Over Ni

10.Insulator Material:Polyester(UL94V-0)

11.Standard:PBT

12.Max.Processing Temp: 230C±5C 5S

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

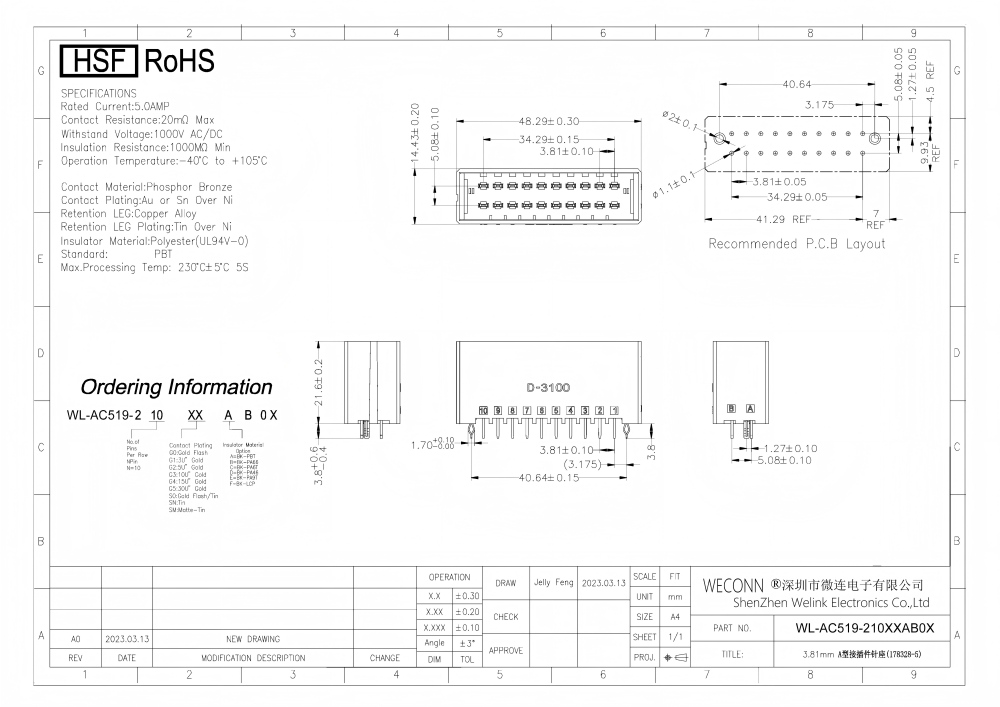

Drawing:
