Battery connector

WL-HCP418-04MXXCSXXX

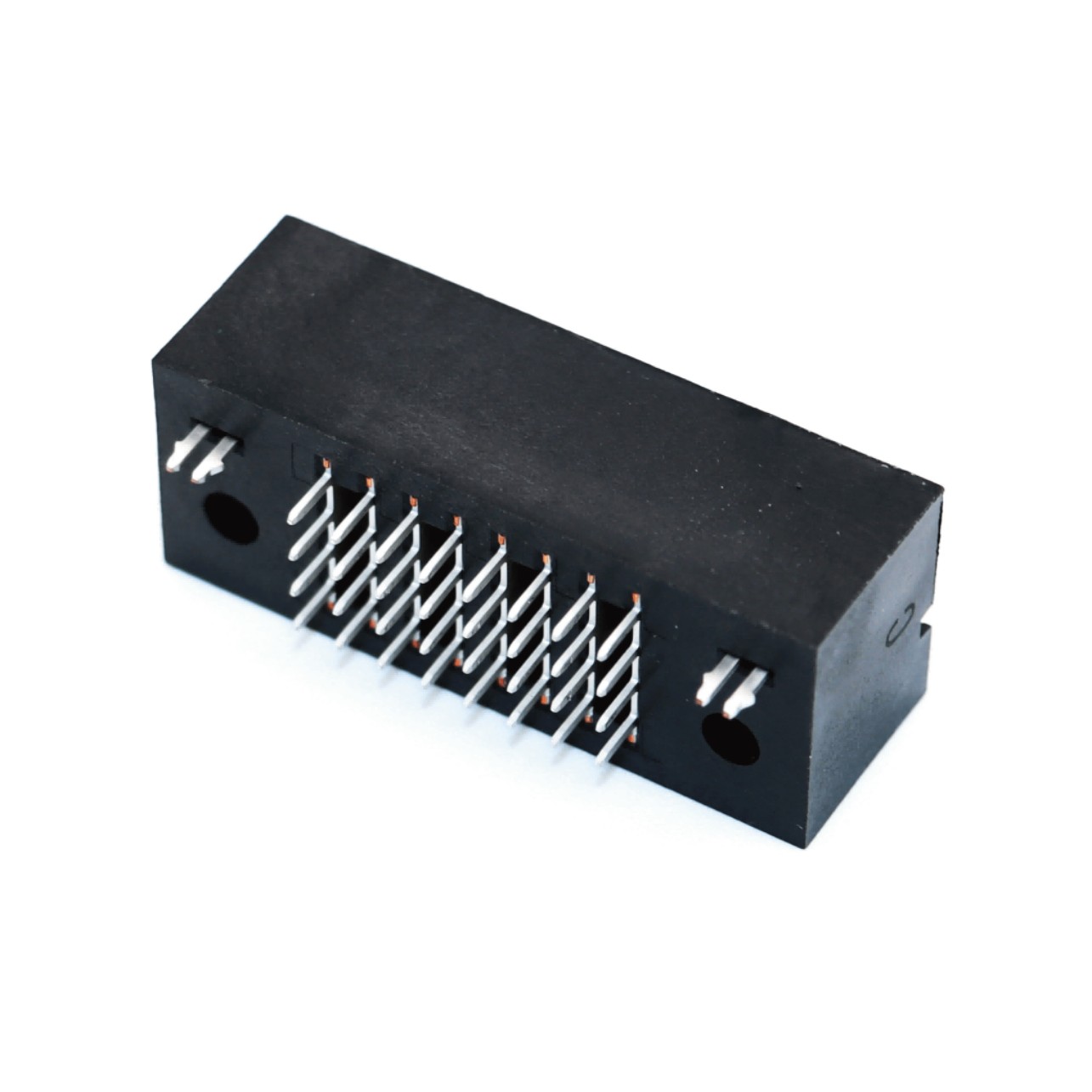

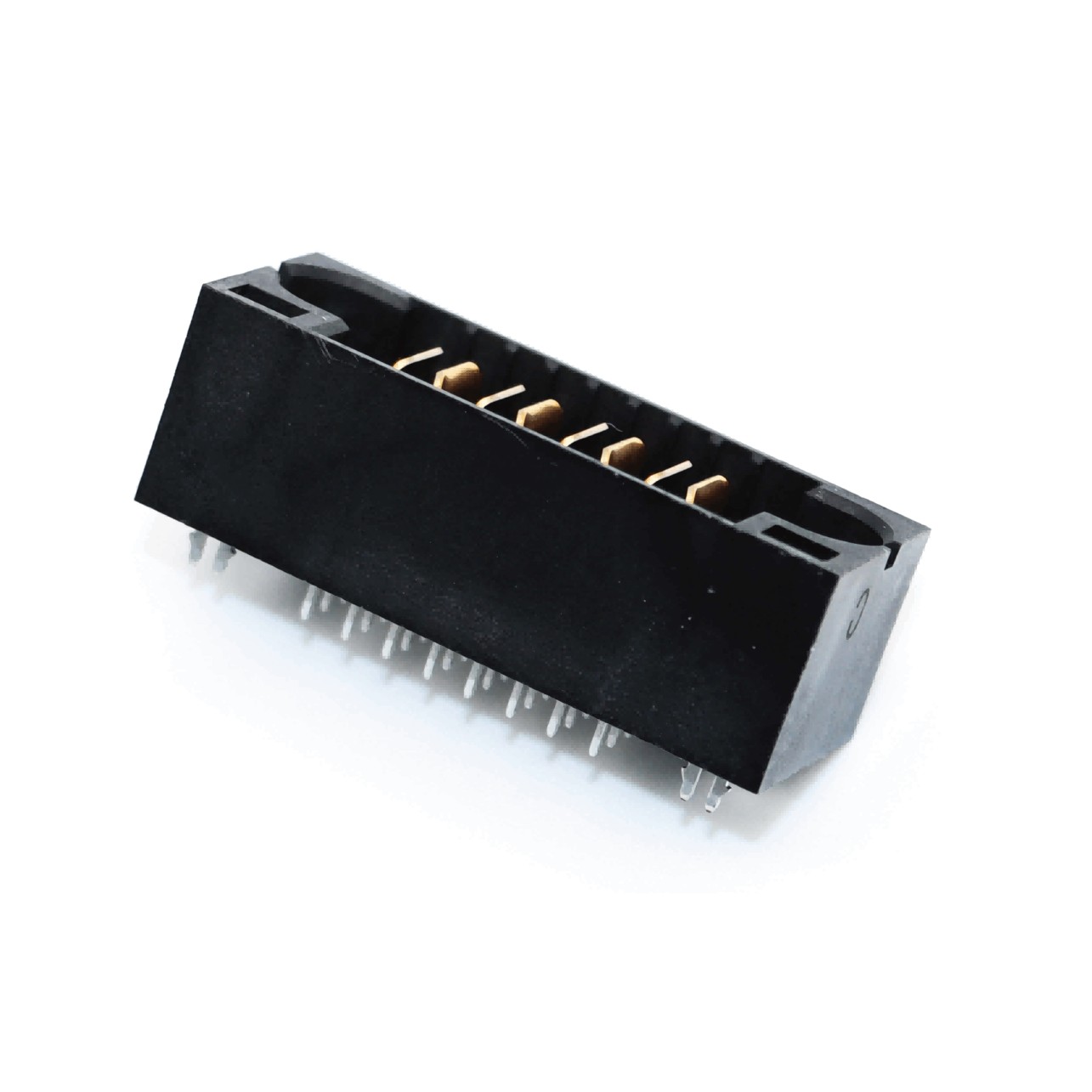

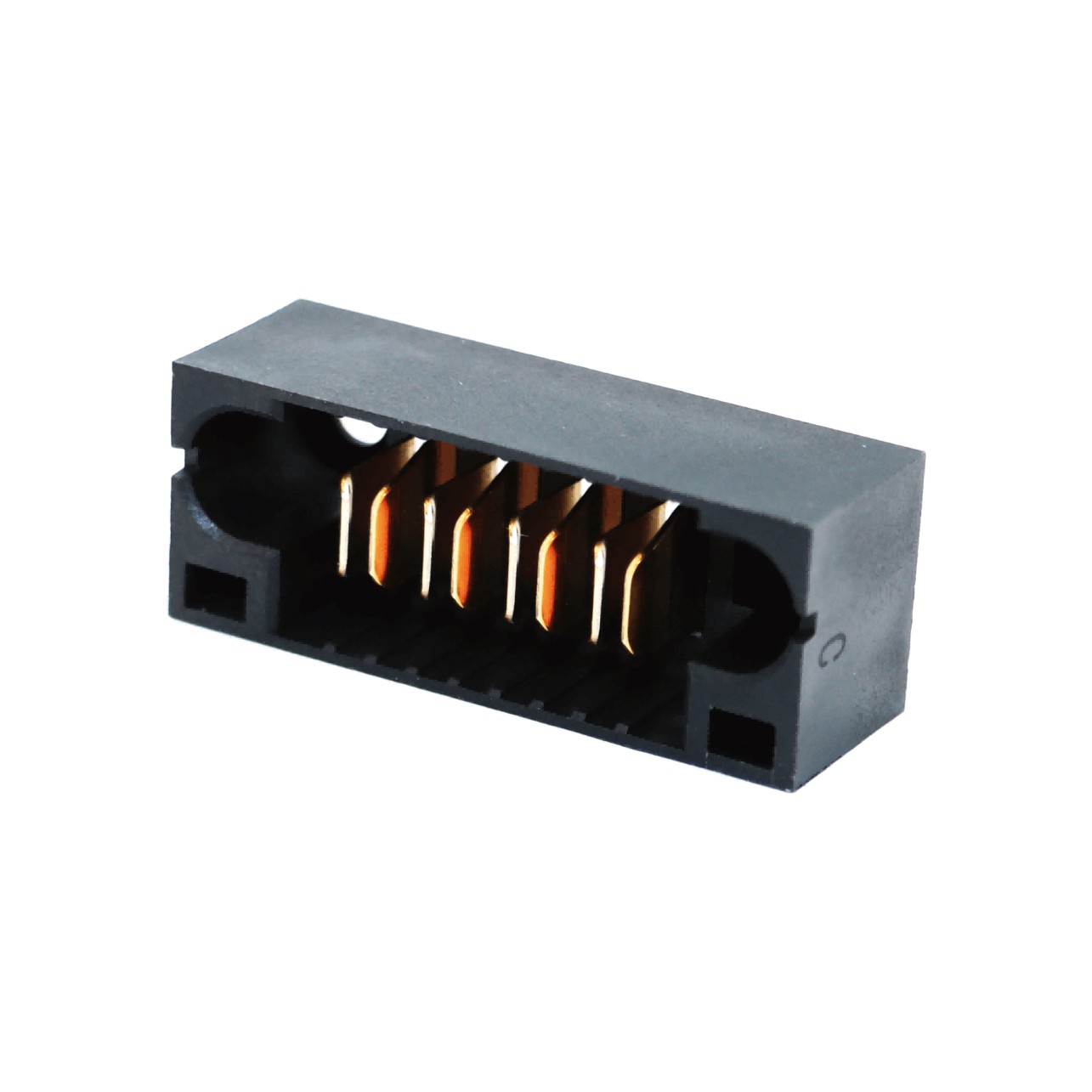

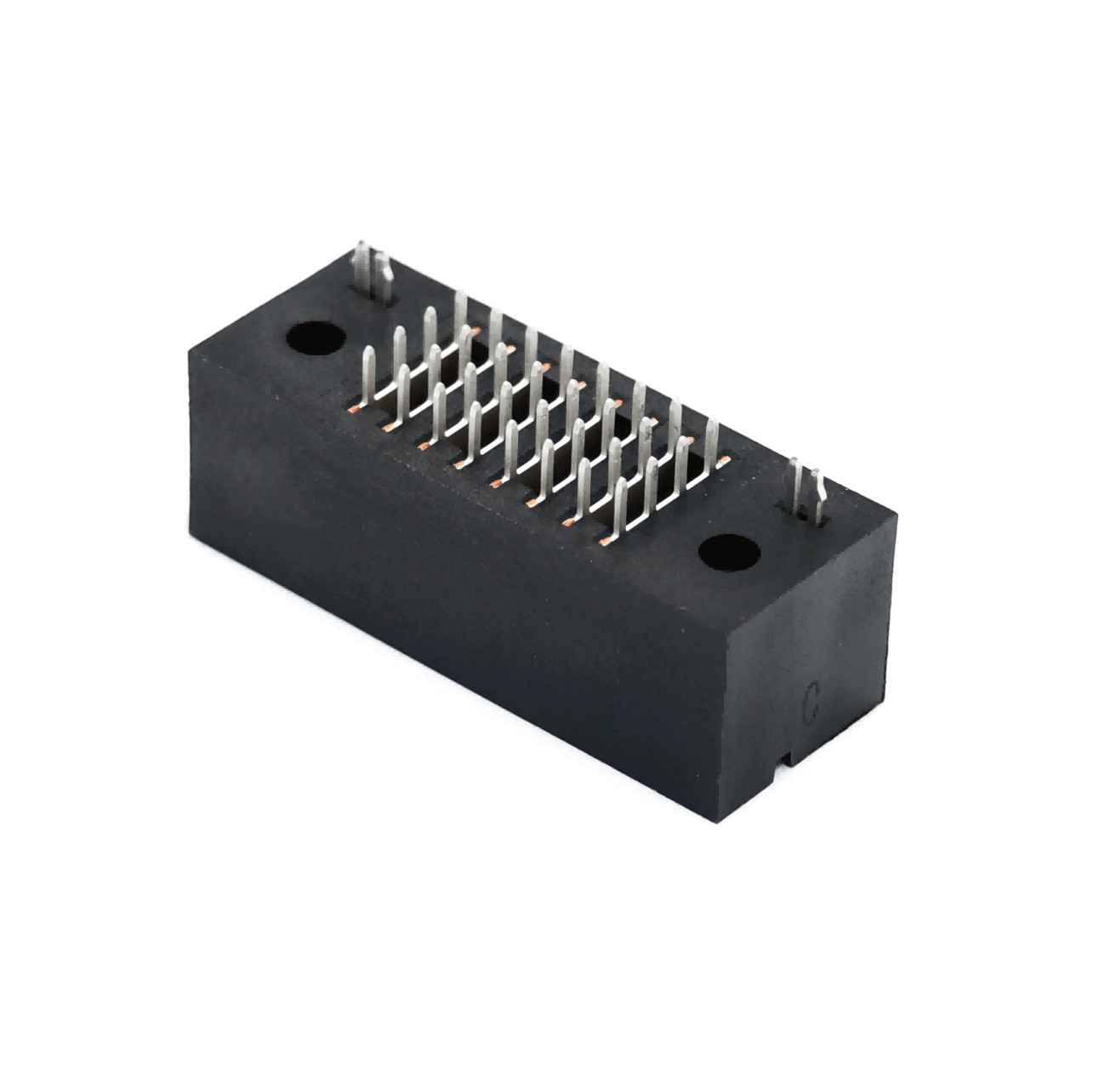

Product name: HCP power connector
Number: WL-HCP418-04MXXCSXXX
Specifications: 5.08mm/4P power pin/straight male/with harpoon/ST
INQUIRY EMAIL

Technical parameters:

1.Power Rated Current:30AMP

2.Power Rated Voltage:250V AC

3.Power Contact Resistance:2mΩ Max

4.Power Contact Withstand Voltage:2500V AC For 1 Minute

5.Insulation Resistance:1000MΩ Min

6.Operation Temperature:-40°C to +105°C

7.Power Contact Material:Copper Alloy

8.Contact Plating:Au or Sn Over Ni

9.PEG Material:Copper Alloy

10.PEG Plating:Tin Over Ni

11.Insulator Material:PA6T(UL94V-0)

12.Max.Processing Temp: 260℃±5℃ For 5~10 Second

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

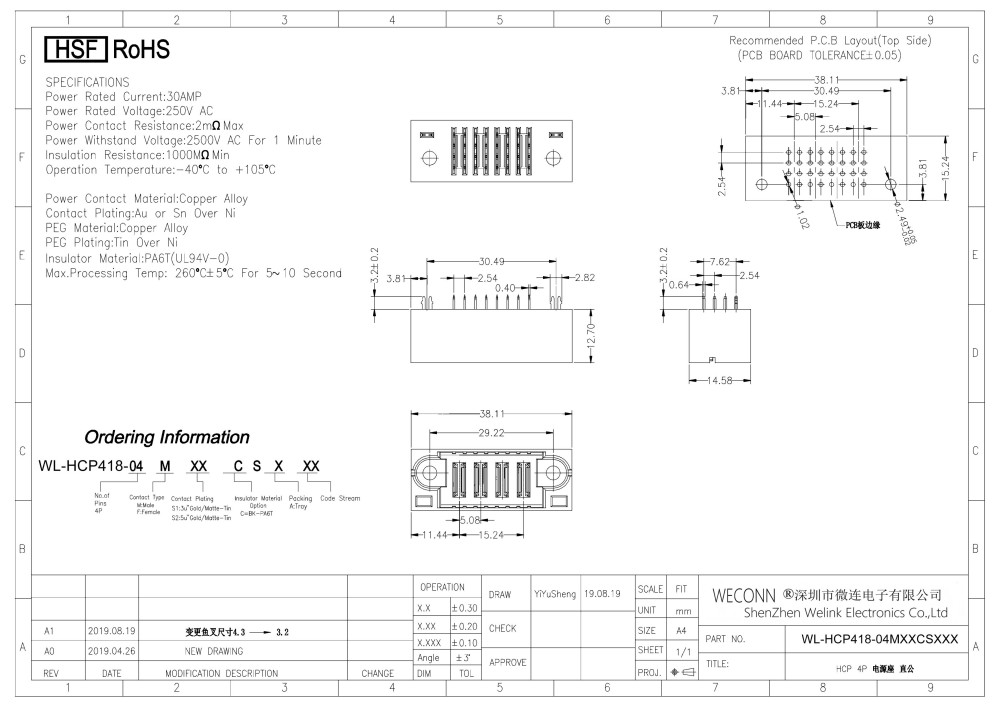

Drawing:
