Board To Board Connector

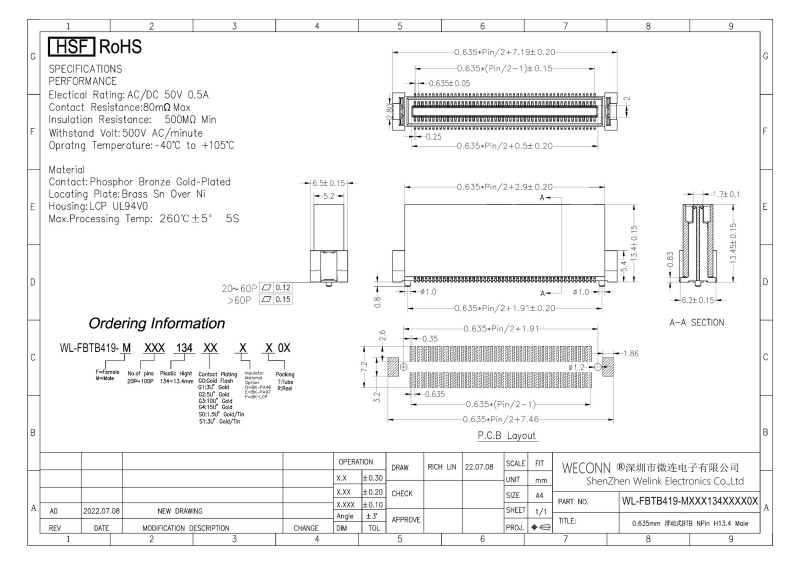

WL-FBTB419-MXXX134XXXX0X

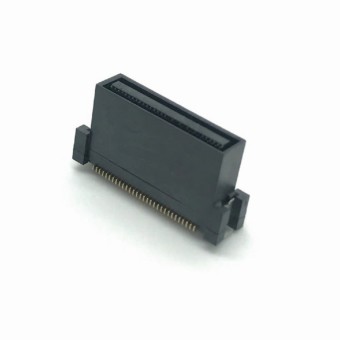

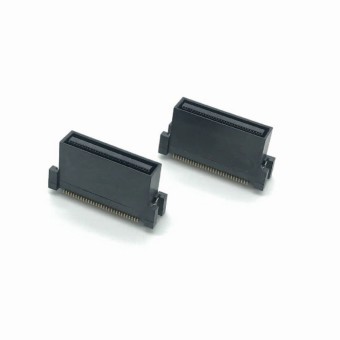

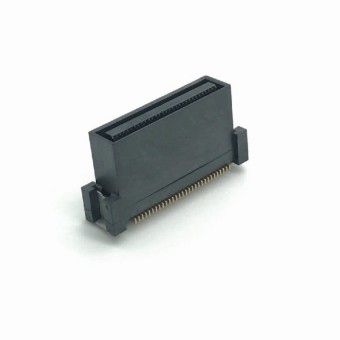

Product name: Floating Board to Board connector.
Number: WL-FBTB419-MXXX134XXXX0X
Specifications: 0.635mm Pitch/Male header/13.4H/SMT /30/40/50/60Pin
INQUIRY EMAIL

Technical parameters:

1.Electiool Roting: AC/DC 50V 0.5A

2.Contoct Resistonce: 80mΩ Max

3.Insulation Resistonce: 500MΩ Min

4.Withstond Volt: 500V AC/minute

5.Oprotng Temperature:-40C to +105℃Material

6.Contoct: Phosphor Bronze Gold-Plated

7.Locating Plate: Phosphor Bronze, Sn Over Ni

8.Housing:LCP UL94V0 Mox.Processing

9.Ternp: 260℃±5℃ 5S

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage
