Inquiry:
Technical parameters:
1.Current Rating: 0.5A
2.Voltage Rating: 50V AC/DC
3.Insulation Resistance: 500MΩ Min
4.Withstanding Voltage: 200V AC/minute
5.Contact Resistance:50mΩ Max
6.Operating Temperature:-40C to +105℃
7.Contoct: Phosphor Bronze
8.Contact: Au Over Ni
9.Housing: PA9T,UL94-V0
10.Soldering Temperature: 260℃±5℃ 5S
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

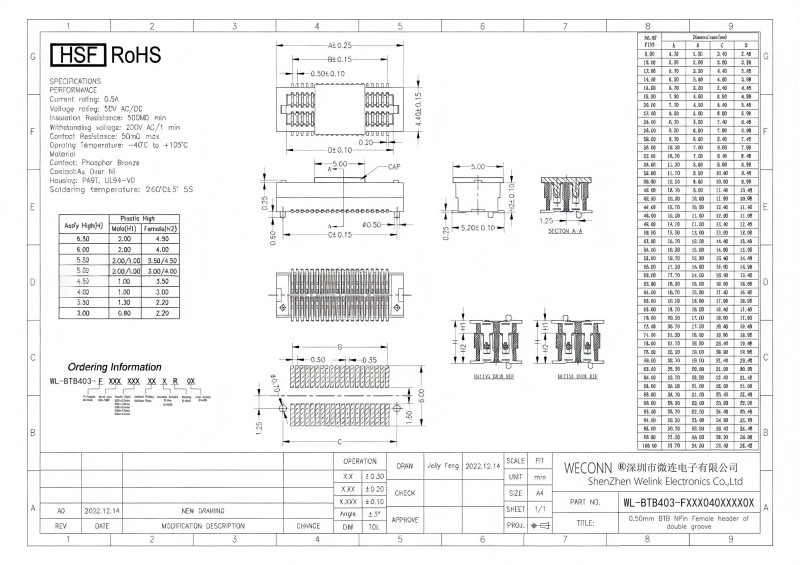

Drawing:
