Board To Board Connector

WL-BTB401-MXXX040XXFX0X

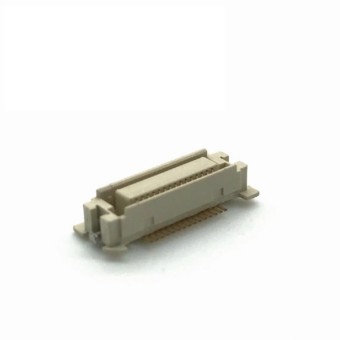

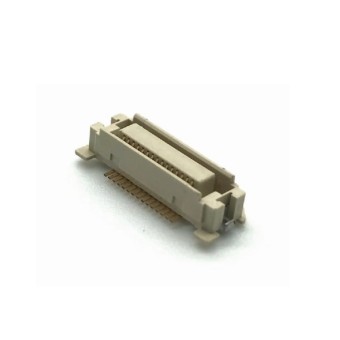

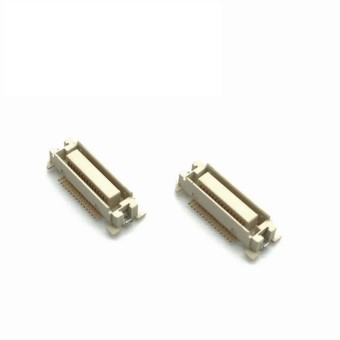

Product name: Board To Board Connector.
Number:WL-BTB401-MXXX040XXFX0X

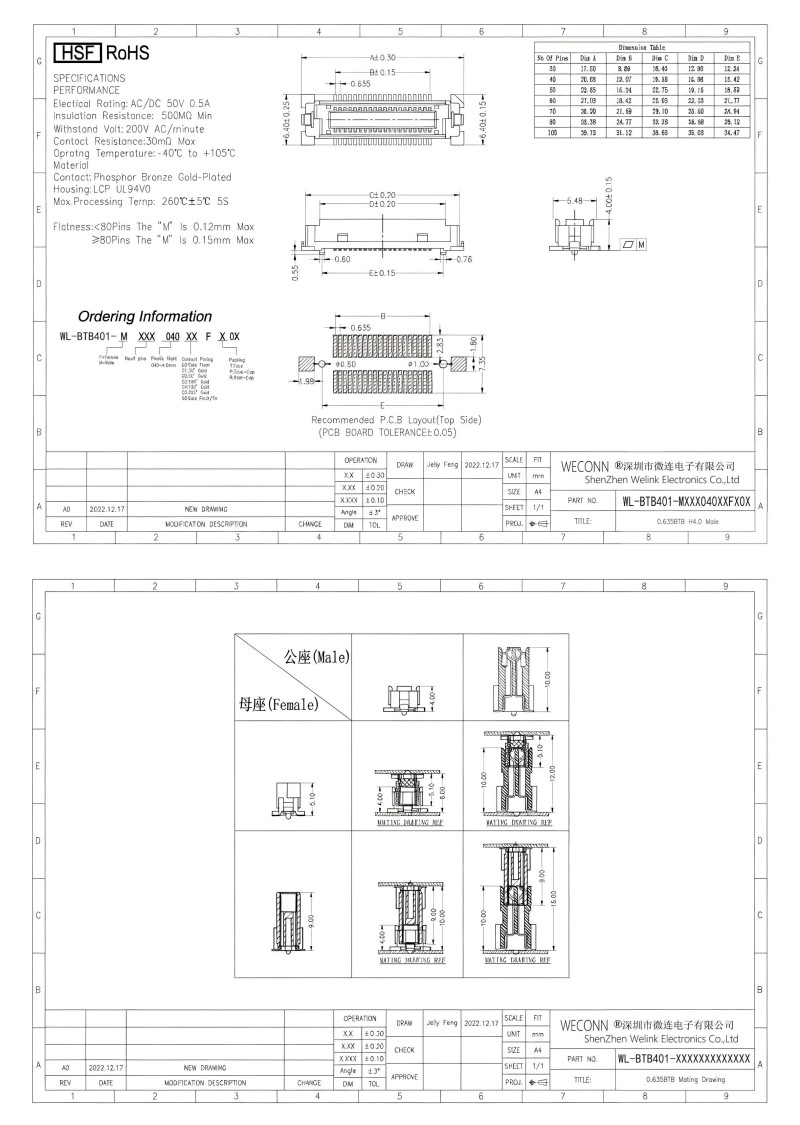

Specifications: 0.635mm Pitch /Male header/4.0H /SMT /30/40/80/100Pin
INQUIRY EMAIL

Technical parameters:

1.Electiool Roting: AC/DC 50V 0.5A

2.Insulation Resistonce: 500MΩ Min

3.Withstond Volt: 200V AC/minute

4.Contoct Resistonce:30mΩ Mox

5.Oprotng Temperature:-40C to +105℃Material

6.Contoct: Phosphor Bronze Gold-Plated

7.Housing:LCP UL94V0 Mox.Processing

8.Ternp: 260℃±5℃ 5S

9.Flatness:<80Pins The "M° Is O.12mm Mox

≥80Pins The "M” Is 0.15mm Mox

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage
